Printing Volume:
153.4 × 87 × 165 mm (approx. 2.2 L)

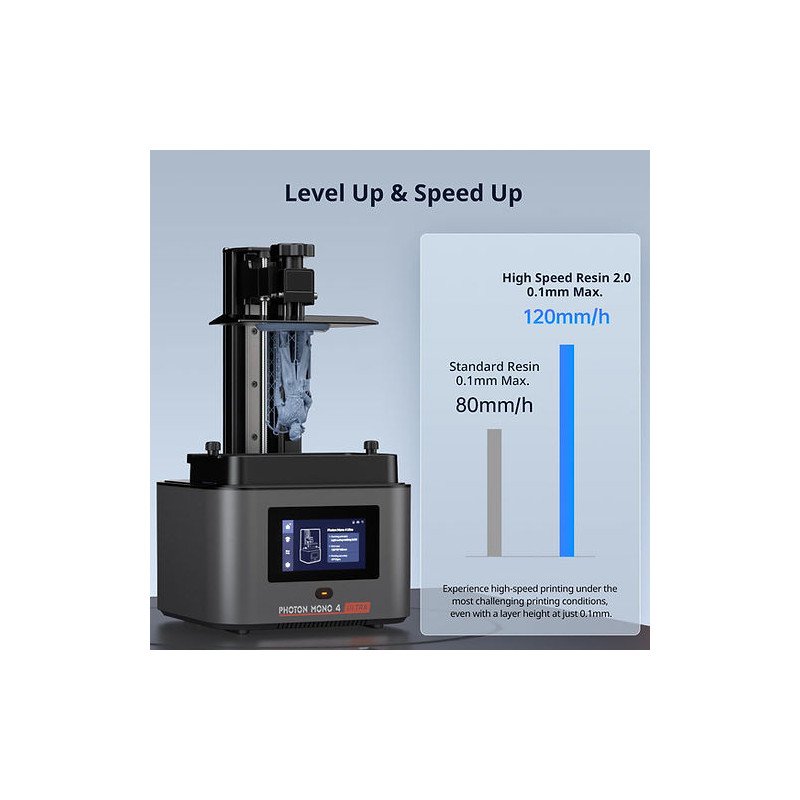

Printing Speed:
Standard Resin (0.1 mm layer height): up to 80 mm/h
High-Speed Resin (0.1 mm layer height): up to 120 mm/h
Layer Thickness (Z Resolution):
0.02 – 0.15 mm
X/Y Axis Resolution (Pixel Size):
17 × 17 µm
LCD Screen:
7″ monochrome, 10K resolution (9024 × 5120 px)
Light Source:
COB + Fresnel lens + light uniformity algorithm
Light Intensity / Uniformity:
≥ 3500 µW/cm²; uniformity ≥ 90 %
Machine (Footprint) Dimensions:
231 × 236 × 430 mm
Net Weight:
5 kg
Release Film Type:
ACF (Advanced Compensation Film)
Resin Vat Capacity:
≤ 0.39 L
Levelling:
4-point manual leveling
Connectivity / Interface:
USB, Wi-Fi, LAN compatible
Power Supply (Rated):
66 W
Supported Materials:
Standard, high-speed, water-washable, ABS-like, and plant-based resins
