Scan Mode: HD Mode
Fast Mode
Light Source: HD Mode: Infrared MEMS
Fast Mode: Infrared VCSEL
Point Distance: HD Mode: 0.05mm～3mm
Fast Mode: 0.5mm~10mm
Capture Frame: HD Mode: up to 15 fps
Fast Mode: up to 20fps
Working Distance: HD Mode: 100-350mm
Fast Mode: 270-1500mm
IR Camera Resolution: HD Mode: 2MP
Fast Mode: 1.3MP
Align Mode: Feature; Texture; Markers; Hybrid
Color Camera Resolution: 48 MP
Output Formats: ply; stl; obj; asc
Outdoor Scan: Yes
Scanner Body Weight: Limited edition : 643g;
Regular edition : 535g

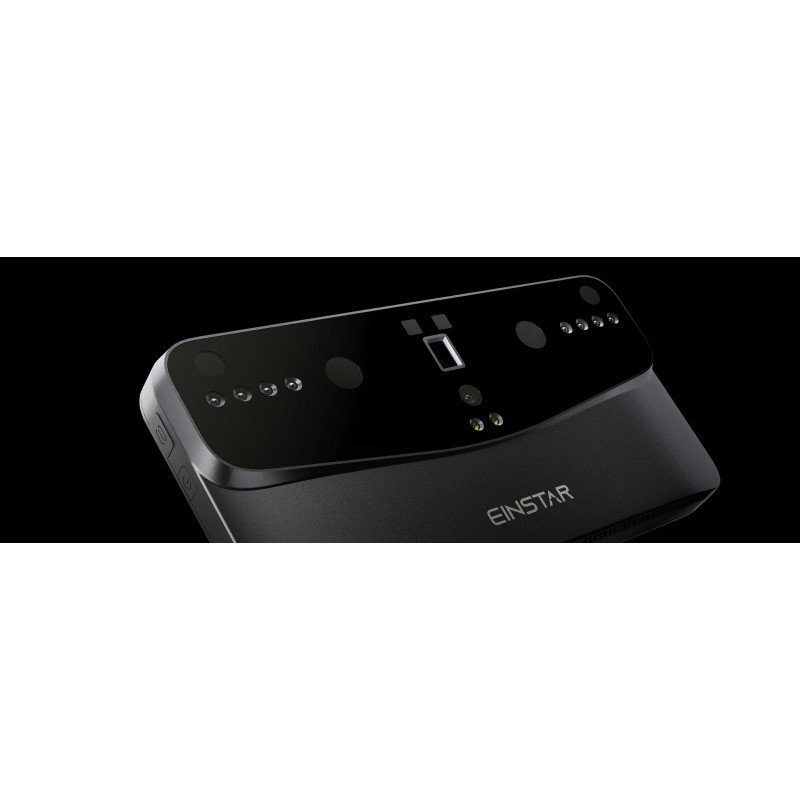

Scanner Size: 180mm*95mm*26.5mm
(L*W*H)
CPU: 8-core CPU, 2.4GHz
RAM: 32 GB LPDDR4 Memory
Internal Hard Drive: 32GB eMMC + 512GB SSD
Power Charger: 65W fast charging, supports PD/PPS protocols
Interface: Wi-Fi 6, USB Type C

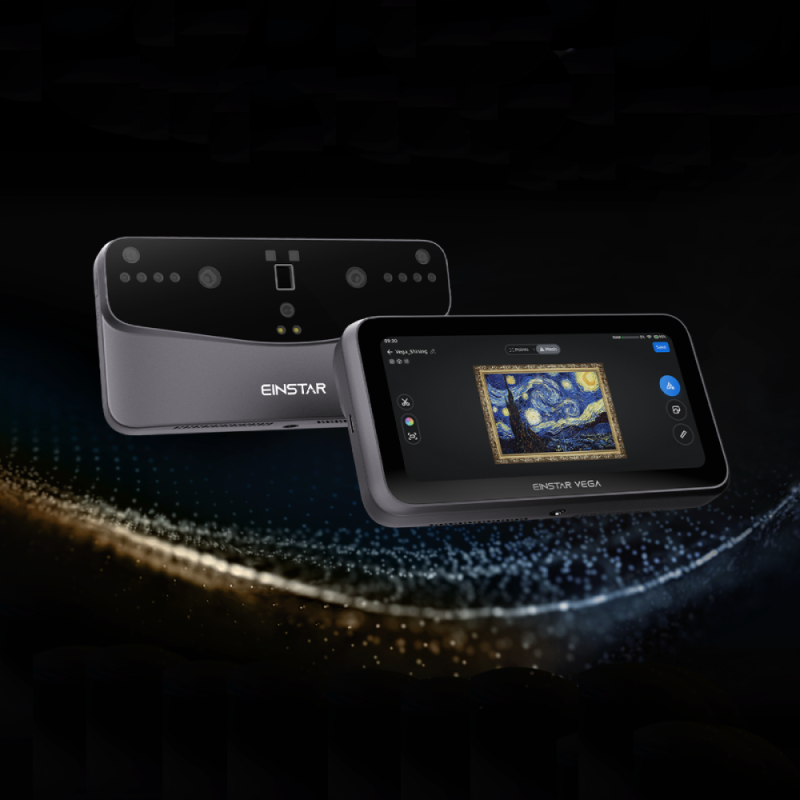

Touchscreen: 6.4'' 2K OLED
Supplemental Light: 10
IMU: 6 DoF
Operating Temperature Range: -10~40℃
Operating Humidity Range: 0 to 90% RH (non-condensing)
Packing Size: 380*305*155mm
Protection Grade: IP50
Battery: Built-in 5000mAh；
External power bank charging supported
Supported OS
No computer required for 3d scanning operation;
StarVision（Data processing program on PC）：Windows10/11(64-bit); macOS
Recommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0 ( on Apple chip )
